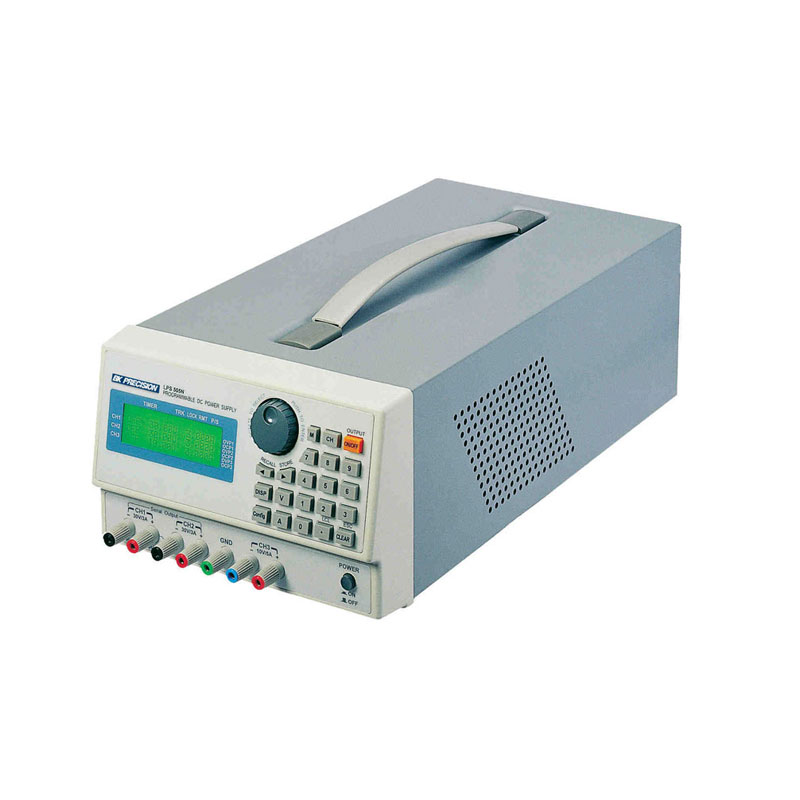

台湾百科 三组独立输出可程式直流电源供应器 LPS505N-MO

Channel No.

CH1 & CH2

CH3

Output Voltage

0 ~ 32V

0 ~ 15V

Output Current

0 ~ 3A

0 ~ 5A

Output Power (CH3 Auto   Ranging)

96W

30W

Line Regulation ±(% of output + offset)

Voltage

0.01% + 2mV

Current

0.01% + 300uA

Load Regulation ±(% of output + offset)

Voltage

≤3mV

≤5mV

Current

0.01% + 300uA

Ripple and Noise ( 20Hz ~   20MHz )

Normal Mode Voltage

700uVrms / 7mVpp

1mVrms / 20mVpp

Normal Mode Current

<1mA

<5mA

Resolution

Programming

10mV / 1mA

10mV / 2mA

Readback

10mV / 1mA

3mV / 2mA

Programming Accuracy ±(% of output + offset)

Voltage

0.05% + 20mV

0.05% + 6mV

Current

0.05% + 3mA

0.05% + 4mA

Readback Accuracy ±(% of output + offset)

Voltage

0.05% + 20mV

0.05% + 6mV

Current

0.05% + 3mA

0.05% + 4mA

Temperature Coefficient per°C ±(% of output + offset)

Voltage

<0.1% + 3mV

Current

<0.2% + 2mA

Tracking Accuracy ±(% of output + offset)

Voltage

0.1% + 40mV

Transient Response Time

<50uS

Stability, constant output   & temperature ±(% of output + offset), 8hrs

Voltage

<0.2% + 2mV

Current

<0.1% + 1mA

Voltage Programming Speed

Rising Time at Full Load

3mSec

Rising Time at No Load

3mSec

Falling Time at Full Load

8mSec

Falling Time at No Load

250mSec

General

AC Line Input Voltage Ranges

115 / 230 VAC ± 10% ( 47Hz ~ 63Hz )

Temperature Ratings

Operating( 0℃ ~ 40℃ ) ·   Storage( - 10℃ ~ 70℃ )

Common-Mode Voltage

±240Vdc

Dimensions ( W×H×D )mm

( 216 × 135 × 432 )

Weight

9kg
