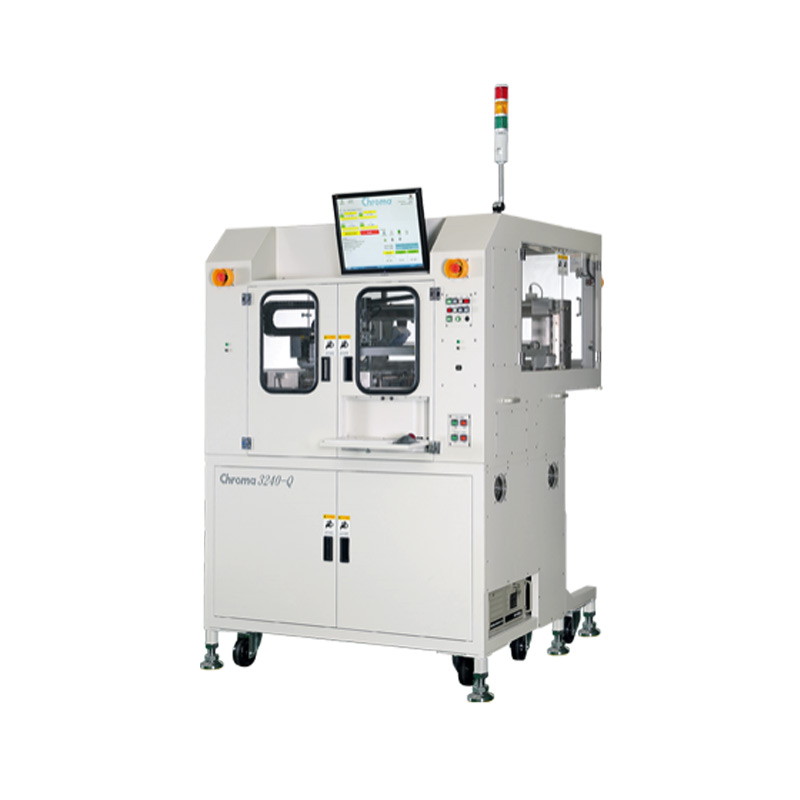

台湾chroma 无线射频分类机 3240-Q

Dimension (WxDxH)

1360 mm x 1390 mm x 1930 mm

Weight

900kg

Facility

Power : AC200V, Single phase   50/60Hz, 10 KVA Max. Compressed
Air : 0.5 MPa or higher (dray and clean air) Flow   Rate : 150 L/min, constant supply

Applicable Device

Type : CSP, BGA, Gull Wing Package

Package Size : 3 mm x 3 mm to 40   mm x 40 mm Package Height : 0.5 mm to 5 mm

Lead / Ball pitch : 0.5 mm / 0.4   mm and above

Category

3 categories (1 auto, 2 manual)

Applicable Tray

JEDEC or EIAJ

Index Time

4 sec.

Contact Method

Direct Contact / Drop and Press

Contact Force

Up to 50 ± 1 kgf

Test Site Configuration

4 sites, 2x2, Pitch X = 120 mm,
Y   = 120mm 8 sites, 4x2, Pitch X = 100 mm, Y = 120mm

PCB Same Site Isolation

-63dB

PCB Different Site Isolation

-91.5dB

Chamber Far Field Isolation

2.4GHz : -80dB @ Distance >250mm   (=2*λ2.4GHz)

Jam Rate

1/5,000

Interface

GPIB

Hot Temperature (Option)

Operating Range : Ambient ~ 125˚C   (Heating Time < within 30 min.)

Accuracy : Contact Head ± 3˚C, Pre-heater   ± 5˚C
