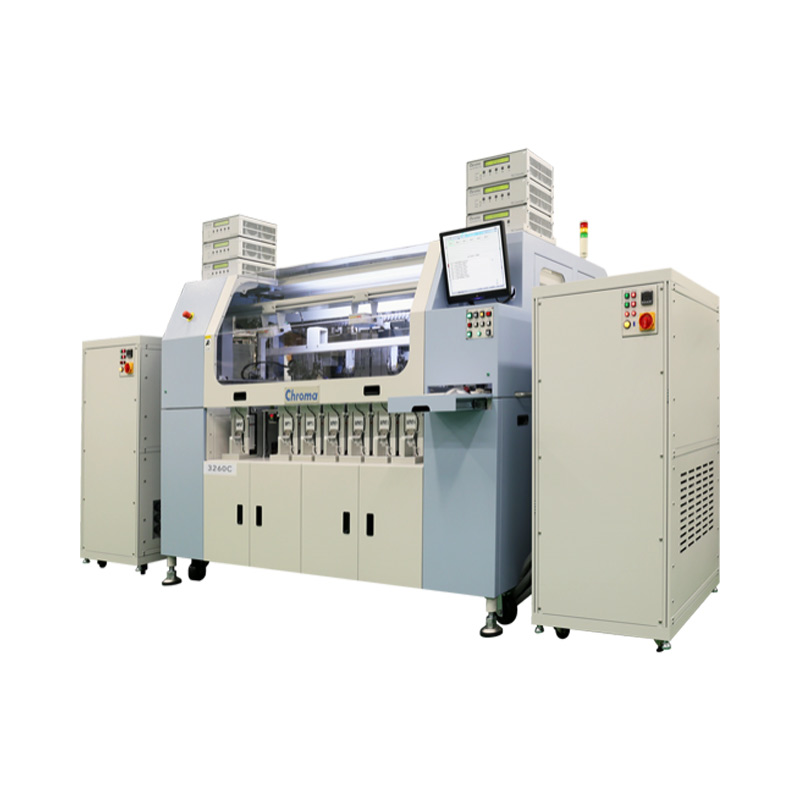

台湾chroma 三温系统板测试分类机 3260C

Dimensions

Handler

2,570 mm (W) x 1,360 mm (D) x 1,780   mm (H)

Chiller (each set)

680 mm (W) x 920 mm (D) x 1,500 mm   (H)

Weight

Handler

approx. 1300 kg

Chiller (each set)

approx. 200 kg

Facility

Handler

Power Source: AC220, 50 / 60Hz Single
Phase, 6KVA Max. Controller Circuit : 3.0KVA Max

Heater Circuit : 3.0KVA Max (Option)

Chiller (each set)

Power Source: AC220, 50 / 60Hz Single   Phase, 5KVA Max.

Compressed Air & LN2

Handler

Dry Air of 5.0 kg/cm2 (0.49Mpa) or   higher, constant supply

Chiller (each set)

LN2 & Dry Air 0.4~0.9 Mpa, Dew   Point -50˚C, constant supply

Vacuum Source

Build-in Diaphragm Vacuum Pump: Pumping   Volume : 100L/min

Ultimate Pressure : 100 Torr(-13.3Kpa)   Max.

Applicable Device

Type: GBA Series, µBGA, PGA, QFP   Series, CSP, BCC,
QFN, Flip-Chip, TSOP Outer Dimensions: 4mm x 4mm to 45mm x 45mm

Lead / Ball Pitch : 0.4mm / 0.5mm   and above

Multiple Testing Layout

6 Sites (Pitch 400mm)

Index Time

3.0 sec (excluding Tester communication   time)

One Site Cycle Time : 3.5 Sec.

Jam Rate

1/5000

Applicable Tray

JEDEC and EIAJ

Category

4 categories (6 categories for option)

Contact Force

Max. 60 kgf (accuracy ± 1 kgf) by   servo motor (80 kgf for Option)

Soak Hot Temperature (Option)

Operation Mode : Room   Temperature / High Temperature Temperature Range : 50˚C to 150˚C (Heat-up time:   within 30 min)
Accuracy : Pre-heater Buffer ± 5˚C, Contact Area ± 3˚C

Cooling Head : 10˚C + 5˚C

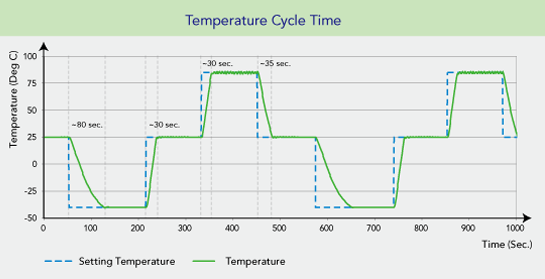

Temperature Control (Nitro TEC)

ATC Module : Tri Temp Control (-40˚C   ~ 125˚C)

Accuracy : Contact Head ± 3˚C

Tester Interface

Handler

Standard : RS-232

Option : GPIB, USB and TTL

Chiller

TTL

Features

Universal Kit Design

ECD Function (Easy-edit communication   define) Two Tray (Color Tray) Mode available Continuous fail retest function Real pick and place system

Yield Control (Average yield of   socket) Yield monitor (Per contact head plug) System Invention Patent No.: 190373   Process Invention Patent No.: 190377

Options

CCD Camera for device orientation
detection Socket Sensor / Socket CCD

RF Shielding Box : 55db for PCIe,
80~90db for PCI/USB/RS232 Rotator (90 degree)

Fault Auto Correlation Test   (FACT) Built in Continuity Test (BICT)

PoP handling capacity
